SwingFLEX® PVC doors are perfect for applications for pedestrian and vehicle traffic. The doors feature clear see through panels for safe two-way traffic, operation is push to open with automatic close. PVC panels are available in 5mm and 7mm thicknesses and the frame is constructed of an attractive anodised aluminium frame. Doors can be powder coated and have sign writing applied to suit your individual requirements. A resilient PVC strip seal can be used along the back stile and head profile for optimum sealing performance.
| Size (W/H) | To max. 3000W x 3000H |
|---|---|
|
Operation |
Semi-automatic – Push to open, door closes
automatically from either direction |
|
Construction |
Door Leaf panel housed in Anodised Aluminium Frame,
continuous grooves retain the sealing strip and PVC
Panel over their entire length. The multipurpose profile
is utilized for both stile and head and retains the spring
mechanism and bottom pivot. |
|
Door Leaf Panel |
5 or 7mm Clear heavy duty PVC Panel as standard with
100mm overlap |
|

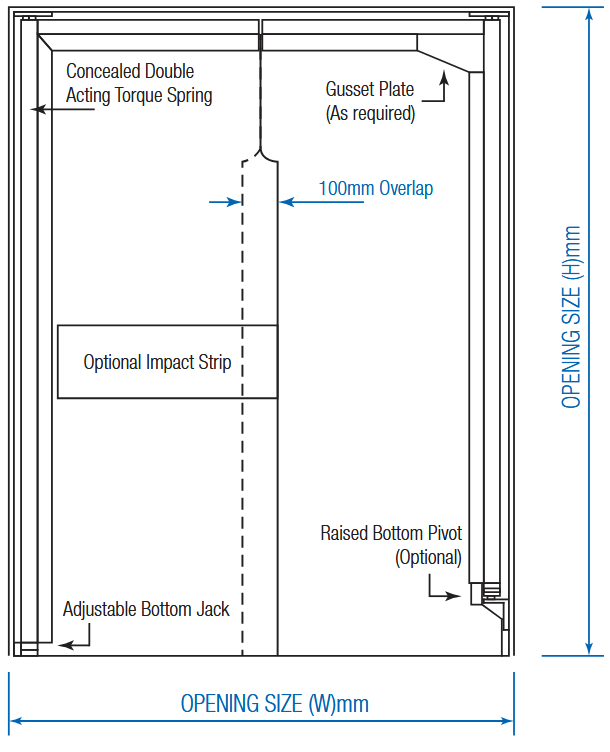

Hardware |
Double acting variable torque spring stake concealed
in door stile. Adjustable bottom jack to cater for height
variance with; hemispherical pivot to compensate for
floor irregularities |
| Options | |
|---|---|
|
Hold Open |
Magnets can be fitted to hold doors open at 90deg for
uninterrupted access |
|
Impact Strip |
PVC panel can be fitted with impact strips for extra
protection to high impact areas. |
|
Opaque Finish |
The standard clear panel can be made opaque through
the application of coloured panels. |
|
Translucent
Finish |
The clear panel can have a translucent finish applied to
allow for privacy, whilst still allowing light to pass through.
(Frosted Finish) |
|
PVC Seals |
PVC sealing to stile and head profile for wash down and
food/hygiene areas |
|
Gusset Plate |
Reinforcing gusset plate can be fitted for larger high
use doors |
|
Powder Coating |
The aluminium frame can be powder coated to suit
client specifications |
|
Panel Signage |
Sign writing to suit clients specifications |

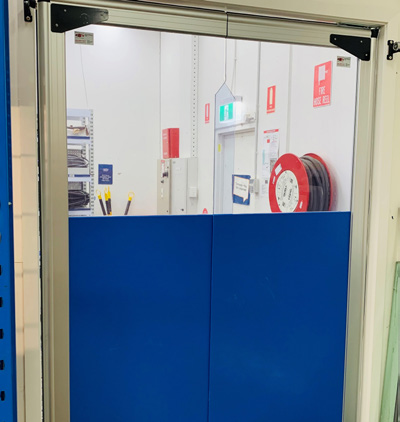

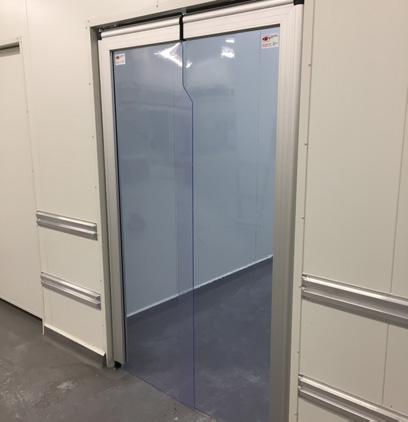

| See-Through Clear PVC Panels | The durable heavy duty clear PVC panels allow for a high level of visibility and safe two-way traffic. |
|---|---|
|
Panel Signage |
Promote your brand and improve your companies image and traffic management by incorporating your
message, notice or logo into the panel of your door. |
|
Opaque finish & Impact Strips |
Despite the durability of the PVC panel it can be fitted with impact strips for extra protection to high
impact areas. These can be fitted at various heights and can be variable in width. |
|
Raised bottom pivot |
A raised bottom pivot system can be utilized in areas such as washdown environments for ease in
cleaning and to minimize build-up of material in pivot system. |
