Insulated Rapid Roll Door for Temperature Controlled Environments

Description

Designed and manufactured by Premier Door Systems, the PremCHILL, RAPID AUTO ROLL DOOR is specifically designed to reduce temperature loss from coolrooms and controlled environments. The curtain configuration includes Polyester reinforced PVC with a foam layer insulation for increased protection from temperature loss, condensation and thermal conductivity. This foam layer can also assist in reducing noise transfer in sensitive areas. Aluminium reinforcing bars provide strong wind resistance and the door can also come with one full-width clear vision panel for safe two-way vision. Featuring opening speeds of up to 1.5m/sec, the PremCHILL is operated by Premier Door Systems own Control System, with a LCD display screen. This controller will accept a large variety of door activation options such as floor induction loops, remote controls and motion sensors.

Specifications

Speed 1.5 m/sec

Door Panel

PVC tear-stop polyweave material with foam layer insulation

Vision

Fully transparent vision panel can be incorporated in the door panel

Control System

Variable Speed Drive Control System with LCD Display 240V / 50 Hz power supply required
Side Frames
Constructed of corrosion resistant Ano- dised Aluminium with purpose design seals

Covers

Top Roll Dust and Motor Covers are Colourbond Off White
Bottom Beam
Anodised Aluminium bottom rail with rubber seal

Optional

Flexibile Bottom Edge with Break-out and Manual Re-set
Safety
Safety Light Curtain Active Height to 1800mm
PremSPEED features a safety light grid with an active height to 1800mm for premium safety. This light curtain is integrated into the doors side columns and reverses the door if obstructed by personnel, or equipment.
Activations
Motion & Safety Radars
Internal & External radar activation and safety
Push Buttons
Internal & External push buttons
Remote Control
Pedestrian or Forklift mounted Remote Control With Receiver
Ground Loops
Internal & External Ground Loop activation with detector

Features & Benefits

Key Advantages

Curtain Colour Options

Download Brochure & Drawings

Enter your details to access the drawing files. After submitting, you can download the PDF using the link below.

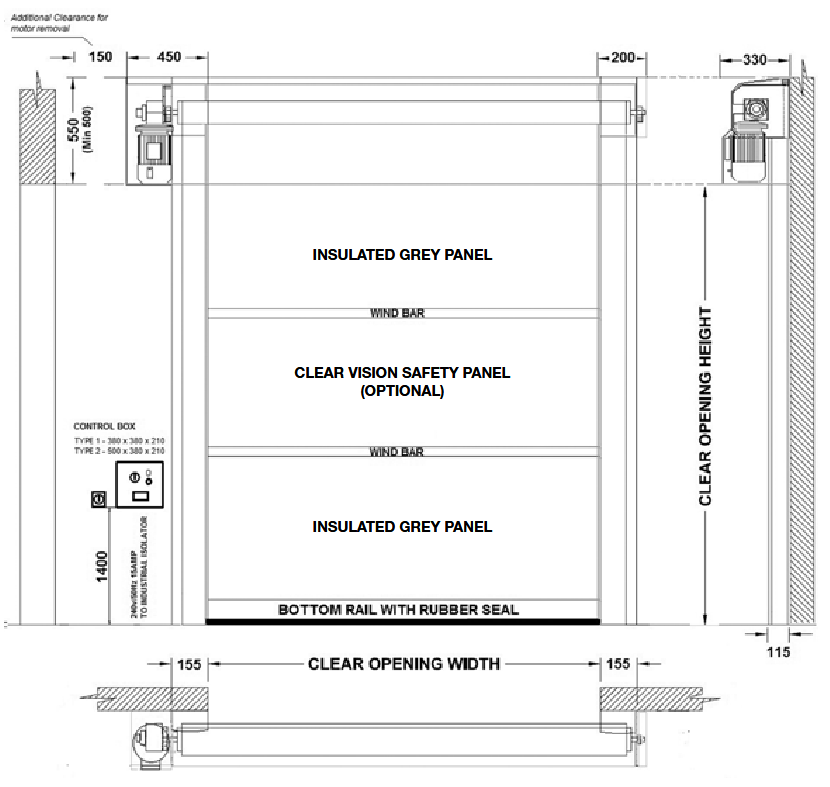

Clearance & Dimension
